Danflon GG Firesafe S&D

Danflon GG
Firesafe

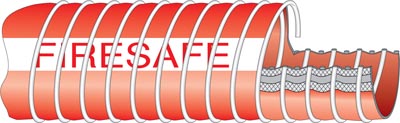

Danflon Firesafe Suction and Discharge Composite Hoses

Designed for Firesafe suction and discharge of the most aggressive chemicals and searching solvents and is generally used where the chemical resistance of polypropylene is inadequate.

Meets the requiremets of the Unites States Coastguard and IMO code.

Size 1:	1”	1½”	2”	2½”	3”	4”
Standard:	BSEN13765:2010	BSEN13765:2010	BSEN13765:2010	BSEN13765:2010	BSEN13765:2010	BSEN13765:2010
Bore Diameter:	25 mm	38 mm	50 mm	65 mm	75 mm	100 mm
Type:	3	3	3	3	3	3
Max Working Pressure Bar:	14	14	14	14	14	14
Max Working Pressure PSI:	200	200	200	200	200	200
Bend Radius INS:	4.0	5.5	7.0	8.0	11.0	15.5
Bend Radius Mm:	100	140	180	205	280	395
Hose Weight Kg Per M:	0.8	1.2	1.9	2.5	3.0	5.2
Hose Weight Lb Per Ft:	0.5	0.8	1.3	1.7	2.0	3.5
Inner Wire Helix:	Galvanised Mild Steel	Galvanised Mild Steel	Galvanised Mild Steel	Galvanised Mild Steel	Galvanised Mild Steel	Galvanised Mild Steel
Outer Wire Helix:	Galvanised Mild Steel	Galvanised Mild Steel	Galvanised Mild Steel	Galvanised Mild Steel	Galvanised Mild Steel	Galvanised Mild Steel
Lining:	ECTFE	ECTFE	ECTFE	ECTFE	ECTFE	ECTFE
Reinforcement:	Polyester Fabrics	Polyester Fabrics	Polyester Fabrics	Polyester Fabrics	Polyester Fabrics	Polyester Fabrics
Cover Material:	Fire Resistant PVC Coated Ceramic Cloth	Fire Resistant PVC Coated Ceramic Cloth	Fire Resistant PVC Coated Ceramic Cloth	Fire Resistant PVC Coated Ceramic Cloth	Fire Resistant PVC Coated Ceramic Cloth	Fire Resistant PVC Coated Ceramic Cloth
Temperature Range:	-30 to +80 o	-30 to +80 o	-30 to +80 o	-30 to +80 o	-30 to +80 o	-30 to +80 o
Safety Factor:	1:4	1:4	1:4	1:4	1:4	1:4
Max Coil Length Ft:	82	82	82	82	82	82
Vacuum Listing	0.9 bar	0.9 bar	0.9 bar	0.9 bar	0.9 bar	0.9 bar
Max Coil Length Meter:	25	25	25	25	25	25
Heavy Duty:	No	No	No	No	No	No
