Danchem PG Heavy Duty химические продукты, топливо

Danchem PG
Heavy Duty

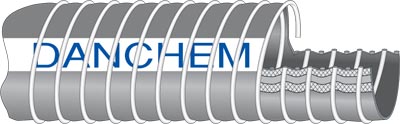

Danchem Suction and Discharge Composite Hoses

This most popular General Purpose Chemical hose is of very substantial construction giving it considerable mechanical strength suitable for marine use and the more demanding of plant duties. Normally transferring a wide variety of acids, alkalis, solvents and petroleum products, this hose is also one of several Dantec hoses also suitable for transfer of certain liquid food products. This hose conforms to BSEN13765:2010; the IBC and IMO codes and USCG requirements.

Meets the requirements of the United States Coastguard and IMO Code. Several Dantec hoses are suitable to carry liquid food products. Hose with aluminium inner wire should not be used with the more acidic products such as vinegar and/or fruit juices.

Size 1:	4”	6”	8”	10”
Standard:	BSEN13765:2010	BSEN13765:2010	BSEN13765:2010	BSEN13765:2010
Bore Diameter:	100 mm	150 mm	200 mm	250 mm
Type:	3	3	3	3
Max Working Pressure Bar:	14	14	14	10.5
Max Working Pressure PSI:	200	200	200	150
Bend Radius INS:	16.0	20.0	30.0	36.0
Bend Radius Mm:	400	510	760	915
Hose Weight Kg Per M:	6.4	10.7	15.0	20.5
Hose Weight Lb Per Ft:	4.3	7.2	10.0	13.7
Inner Wire Helix:	Polypropylene Coated Mild Steel	Polypropylene Coated Mild Steel	Polypropylene Coated Mild Steel	Polypropylene Coated Mild Steel
Outer Wire Helix:	Galvanised Mild Steel	Galvanised Mild Steel	Galvanised Mild Steel	Galvanised Mild Steel
Lining:	Polypropylene	Polypropylene	Polypropylene	Polypropylene
Reinforcement:	Polypropylene	Polypropylene	Polypropylene	Polypropylene
Cover Material:	PVC Coated Polyester Cloth	PVC Coated Polyester Cloth	PVC Coated Polyester Cloth	PVC Coated Polyester Cloth
Temperature Range:	-20 to +80 o	-20 to +80 o	-20 to +80 o	-20 to +80 o
Safety Factor:	1:5	1:5	1:5	1:5
Max Coil Length Meter:	30	30	30	30
Vacuum Listing	0.9 bar	0.9 bar	0.9 bar	0.9 bar
Max Coil Length Ft:	98	98	98	98
Heavy Duty:	Yes	Yes	Yes	Yes
